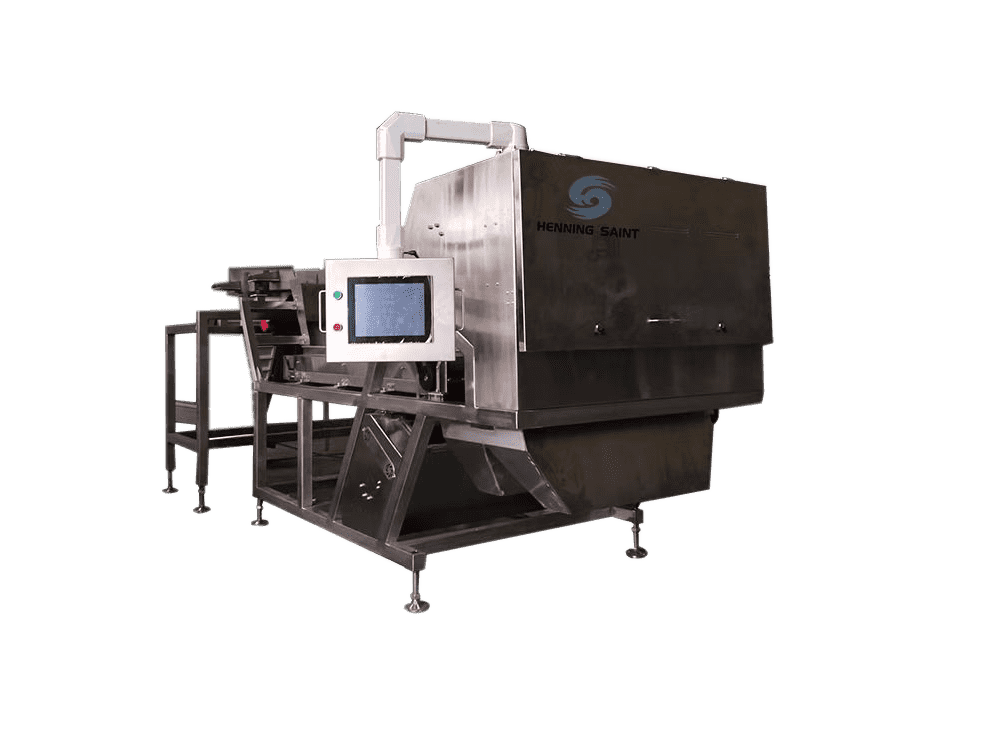

Seeds Color Sorter

AHST seed color sorter is designed to sort rice seeds, cotton seeds, corn seeds, etc. By screening the color and shape differences between good products, inferior products and impurities, removing inferior products and impurities as well as other strange substances with intelligent production method and super high sorting efficiency.

Inquiry Back To List

Product details

Features

1. Special intelligent software system 2. Intelligent linkage

Automatic machine capture Seamlessly connect to various production lines

Physical image comparison Parameter adjustment with material changes

Precise parameter setting

3. Double-layer crawler structure design 4. Remote service

Wide range of materials for crawler feeding Remote control

Double-layer structure can achieve twice sorting Remote maintenance

Track structure reduces damage to materials

Machine structure to improve production and precision

5. Traceability management

Build enterprise product quality file

Realize product quality tracking

Grading management function

Parameters

Item	Parameters
Model No.	HSL1-256	HSL2-512
Power(kW)	5.5KW	7.5KW
Voltage(V)	220（50Hz）	220（50Hz）
Dimension(LWH,mm)	4288×2320×1700	4288×2320×2400
Weight(kg)	1200	1800
Air Pressure(MPa)	0.6-0.8	0.6-0.8
Number of Nozzles	256	512
Sorting Accuracy（%）	>99%	>99%
