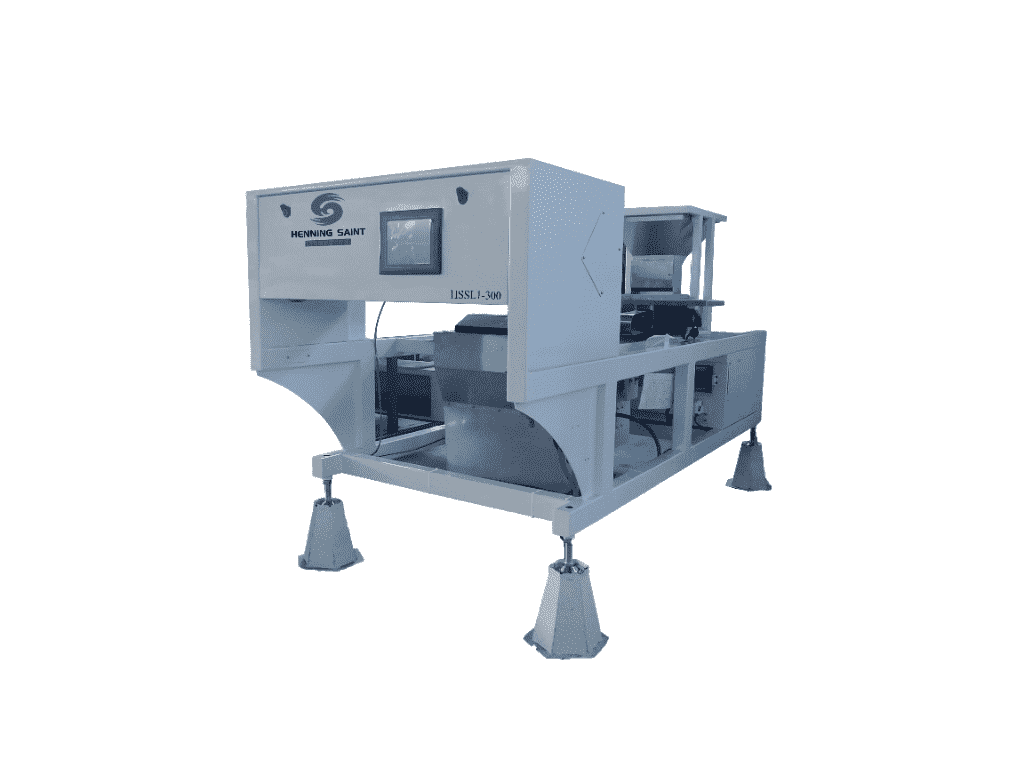

Non-metallic ore Color Sorter

AHST adopts unique mineral separation technology and hidden identification plus optimization algorithm to provide perfect separation solutions for various minerals and ores, realizing efficient material separation, such as quartz, calcite, potassium feldspar, talc, cobble, etc.

Inquiry Back To List

Product details

Features

1. Special intelligent software system 2. Intelligent linkage

Automatic machine capture Seamlessly connect to various production lines

Physical image comparison Parameter adjustment with material changes

Precise parameter setting

3. Double-layer crawler structure design 4. Remote service

Wide range of materials for crawler feeding Remote control

Double-layer structure can achieve twice sorting Remote maintenance

Track structure reduces damage to materials

Machine structure to improve production and precision

5. Traceability management

Build enterprise product quality file

Realize product quality tracking

Grading management function

Parameters

Item	Parameters
Model No.	HSSL1-300	HSSL1-600	HSSL1-1200
Power(kW)	2.5KW	3.5KW	4.5KW
Voltage(V)	220(50Hz)	220(50Hz)	220(50Hz)
Dimension(LWH,mm)	3200×1150×1350	3200×1400×1350	3200×2050×1350
Weight(kg)	650	850	1560
Air Pressure(MPa)	0.6-0.8	0.6-0.8	0.6-0.8
Number of Nozzles	64	128	256
Sorting Accuracy(%)	>99%	>99%	>99%
