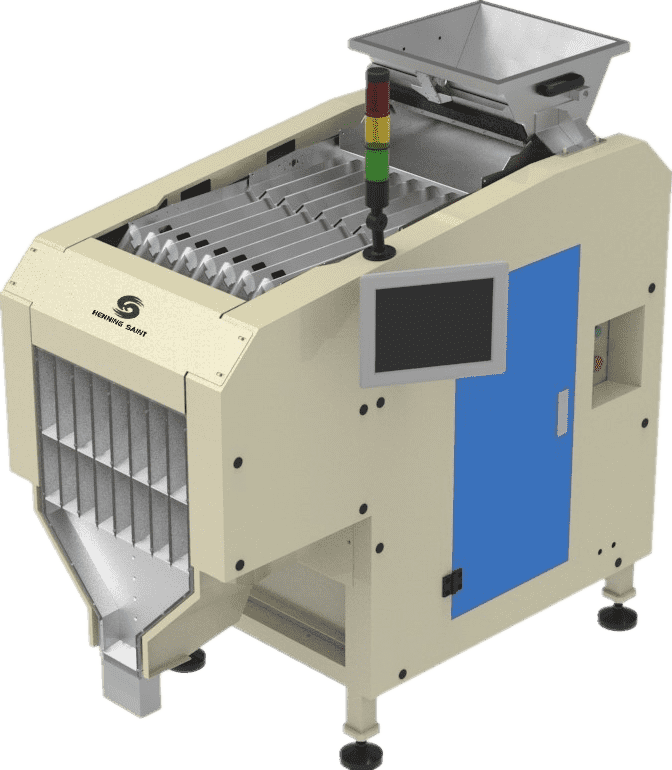

Hardware Vision Counter

HS-VX8 hardware vision counter can count a wide range of hardware such as nuts & bolts, Screws & Bolts, washer, rivet nuts, pins, stud, inserts, fastener, self-piercing rivets for batch package. The benefits of the counter are accuracy, efficiency and economy through eliminating the inaccuracies of common weighing solutions and reducing labor force. It is suitable for packing 5-50 pieces in a single package and can work with different automatic packing machines.

Product details

Working principle of vision counters

HS-VX8 hardware vision counter with high-speed industrial line array camera, when the material falls through the camera recognition area, the line array camera through high-speed scanning, accurately capture the material falling attitude, shape and other information, and upload to the processing center, through the processing center powerful algorithm real-time analysis and processing, accurate calculation of the number of materials to achieve real-time counting function.


Advantage Features

1.High accuracy of counting

  ●High speed array camera can realize continuous uninterrupted scanning imaging, accurate identification count.

  ●Advanced large capacity FPGA processing and control system, response time at 1 nanosecond.

  ●Optimized algorithm software effectively identifies overlapping objects and micro impurity.

  ●intelligent feeding system to ensure the subcontracting accuracy.

  ●Insensitive to dust.

2.High efficiency of counting

  ●Using large track instead of narrow track to scan falling objects greatly improves the counting efficiency.

  ●Increase cache storage room to improve efficiency.

3.Patented self-learning technology can achieve to count different objects easily

Through the learning mode,the data of various falling posture of the materials are automatically obtained,and the accuracy of the parameters is checked by the verification mode. If there is an error, the parameters can be fine-adjusted manually.

4.One button clearing function

It has the function of one key cleaning the tailings without worrying about material mixing, which improves the speed of replacing materials.

5.Connectable to ERP system

The ERP information cascade, label information and local log can be sent to the information system.

6.All packaging number has no negative error,exceed the package can enter the return system

Eliminate the occurrence of customer complaints caused by less material reasons, beyond the value set,the machine can automatically identify and fall to finished conveyor beltthe belt reverses to discharge the excess bag.

7.Intelligent detection alarm

Foreign bodies, lack of material, abnormal packaging machine will issue an alarm prompt.


Technical Parameters



        Item

             Parameters
          Model No.            HS-VX8
         Power(kW)             1.2KW
         Voltage(V)             220(50Hz)
  Dimension(L*W*H,mm)           1360×750×1300
         Weight(kg)             350
  Air Pressure(MPa)         0.6-0.8
 Material Dimension         Ø3-30mm
  Counting efficiency    Ø10mm,20pcs,30 bags/min
Counting Accuracy(%)   >99.9%,no negative deviation

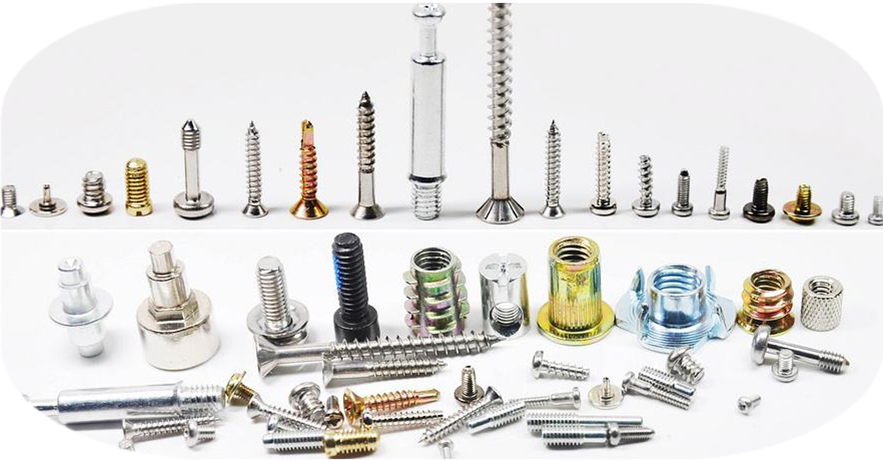

Scope Of Application



src=http___img.j.jiagle.com_media_2018_07_03_9964881530581317.jpg!10&refer=http___img.j.jiagle_副本.png

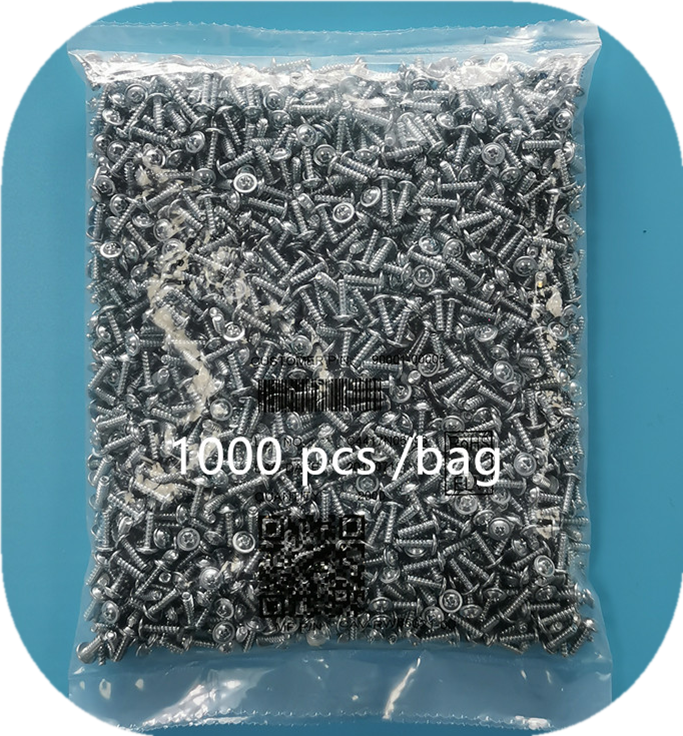

Package Demo





                                                                         Screw fastener counting case
