Silver Contacts Vision Counter

Working principle of vision counters

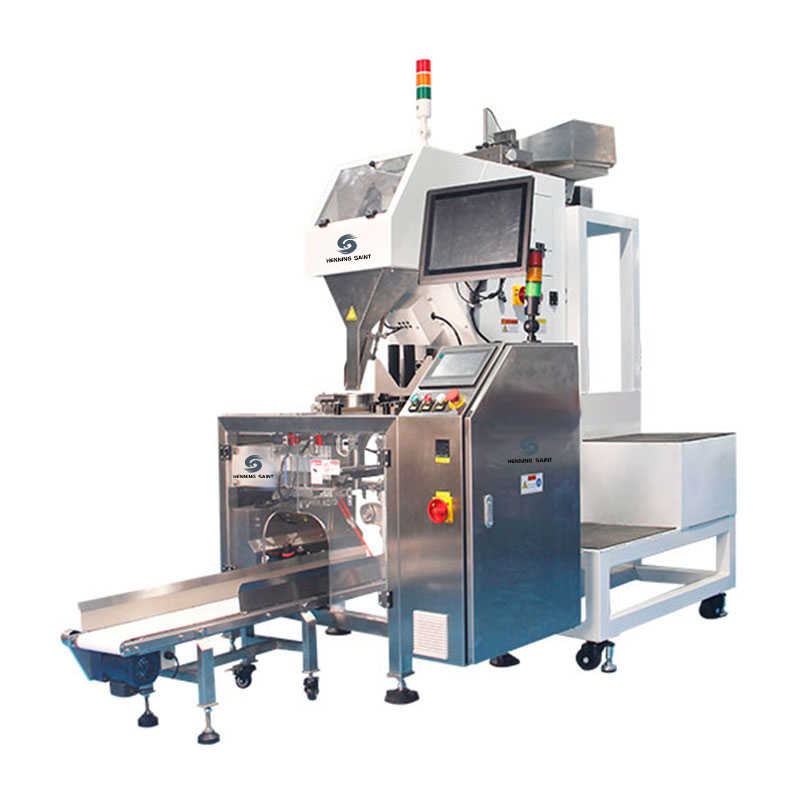

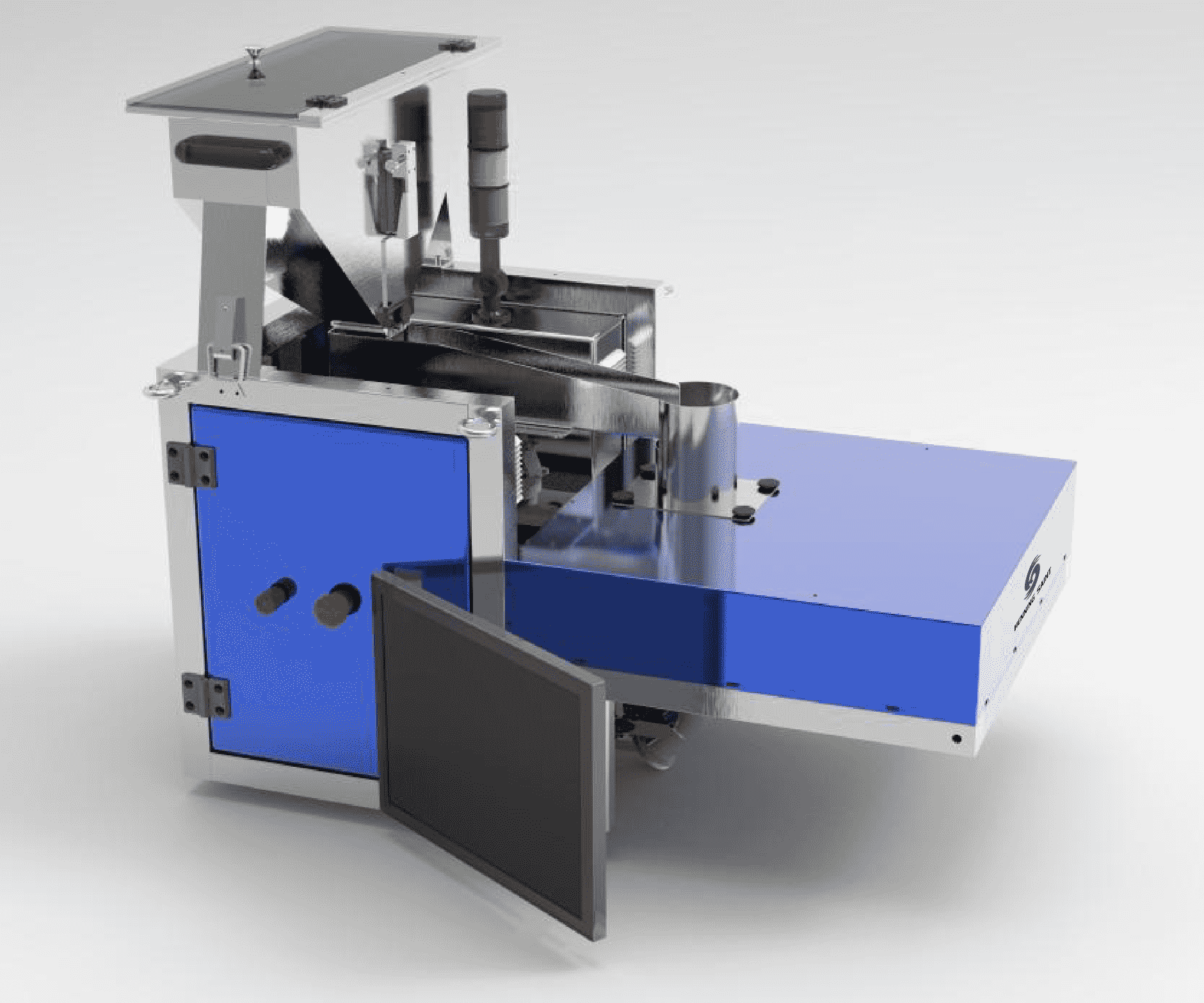

HS-VB60 silver contacts vision counter with high-speed industrial line array camera, when the material falls through the camera recognition area, the line array camera through high-speed scanning, accurately capture the material falling attitude, shape and other information, and upload to the processing center, through the processing center powerful algorithm real-time analysis and processing, accurate calculation of the number of materials to achieve real-time counting function.

Advantage Features

1.High accuracy of counting

  ●High speed array camera can realize continuous uninterrupted scanning imaging, accurate identification count.

  ●Advanced large capacity FPGA processing and control system, response time at 1 nanosecond.

  ●Optimized algorithm software effectively identifies overlapping objects and micro impurity.

  ●intelligent feeding system to ensure the subcontracting accuracy.

  ●Insensitive to dust.

2.High efficiency of counting

  ●Using large track instead of narrow track to scan falling objects greatly improves the counting efficiency.

  ●Increase cache storage room to improve efficiency.

3.Patented self-learning technology can achieve to count different objects easily

Through the learning mode,the data of various falling posture of the materials are automatically obtained,and the accuracy of the parameters is checked by the verification mode. If there is an error, the parameters can be fine-adjusted manually.

4.One button clearing function

It has the function of one key cleaning the tailings without worrying about material mixing, which improves the speed of replacing materials.

5.Connectable to ERP system

The ERP information cascade, label information and local log can be sent to the information system.

6.All packaging number has no negative error,exceed the package can enter the return system

Eliminate the occurrence of customer complaints caused by less material reasons, beyond the value set,the machine can automatically identify and fall to finished conveyor belt, the belt reverses to discharge the excess bag.

7.Intelligent detection alarm

Foreign bodies, lack of material, abnormal packaging machine will issue an alarm prompt.
